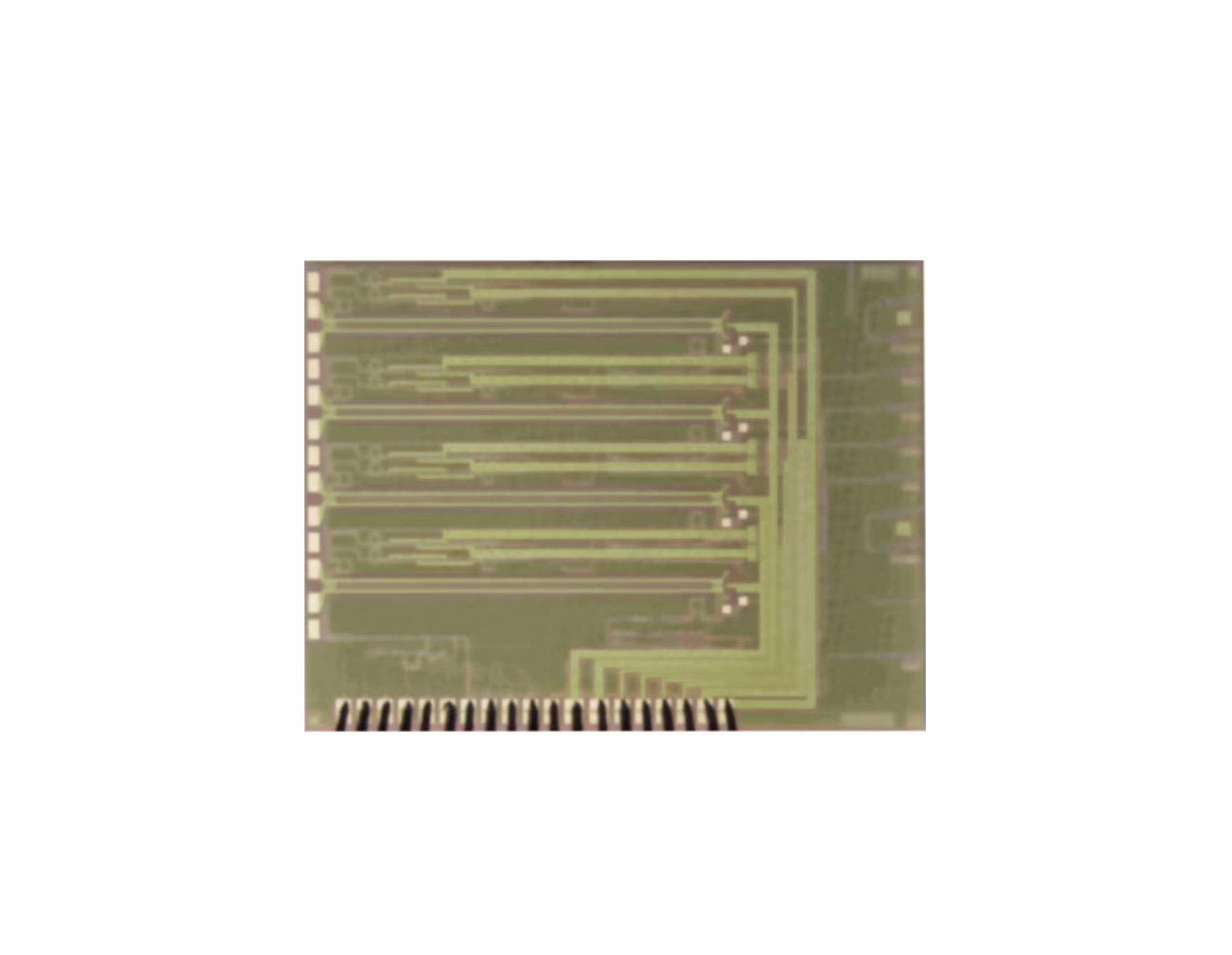

800G DR4 Tx-PIC

Features：

▸ On-chip loss ≤ 10dB (1 LD case), w.o. I/O coupling loss or MZM 3dB working

     point loss;

▸ I/O EC coupling loss ≤ 1.5dB/facet;

▸ Heater Ppi ≤ 12mW;

▸ Heater resistance = 120ohm;

▸ MZM 3dB EO BW ≥ 50GHz;

▸ MZM Vpi ≤ 7.5V;

▸ MZM differential Zt = 65ohm;

▸ MPD responsivity ≥ 0.95 A/W;

▸ MPD dark current ≤ 50nA @ -1V RT;

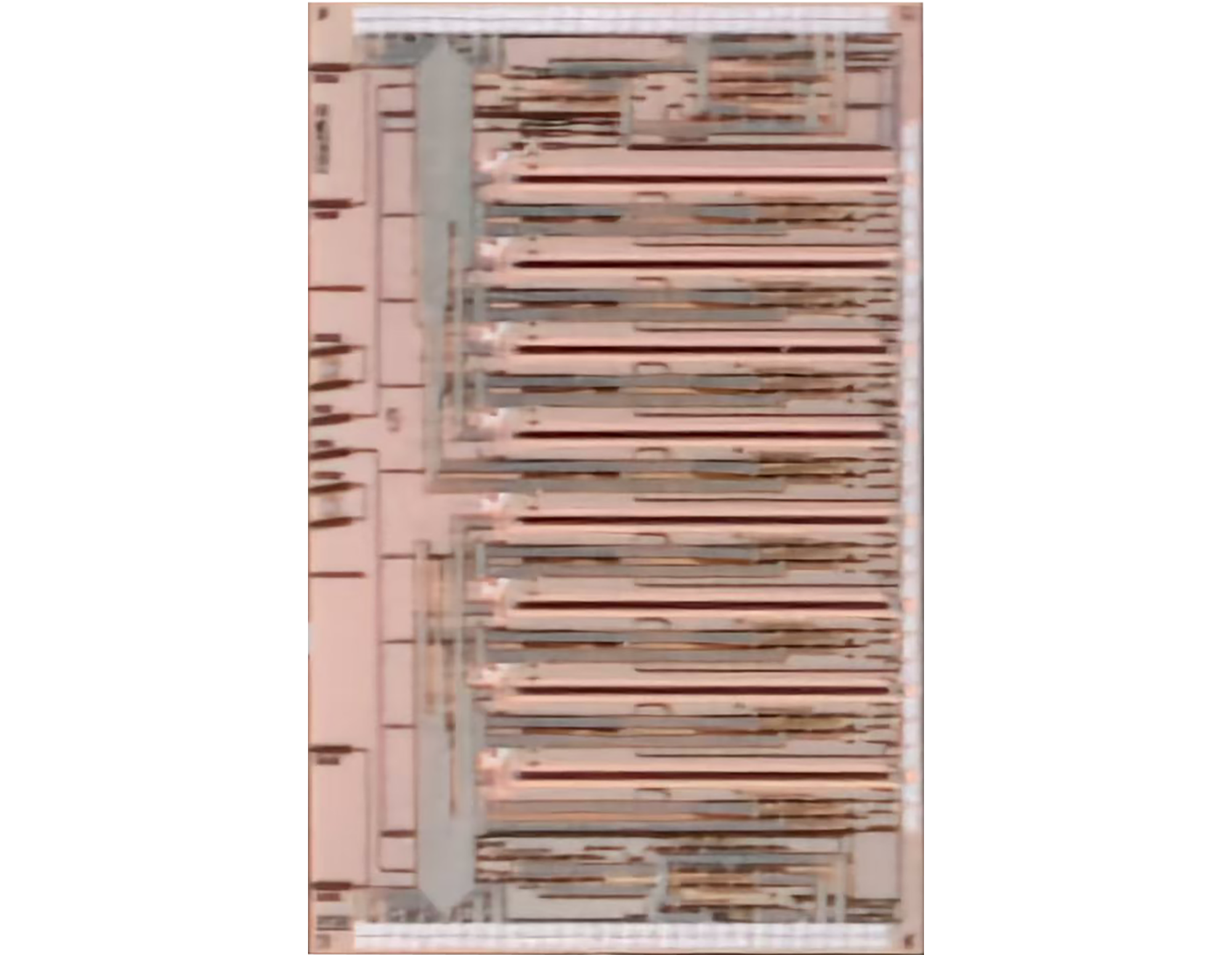

800G 2*FR4 Tx-PIC

Features：

▸ On-chip loss ≤ 8.5dB (4 LDs case), w.o. I/O coupling loss or MZM 3dB working

     point loss;

▸ I/O EC coupling loss ≤ 1.5dB/facet;

▸Heater Ppi ≤ 12mW;

▸Heater resistance = 120ohm;

▸MZM 3dB EO BW ≥ 30GHz;

▸MZM Vpi ≤ 6.3V;

▸MZM differential Zt = 75ohm;

▸MPD responsivity ≥ 0.95 A/W;

▸MPD dark current ≤ 50nA @ -1V RT;

▸Two on-chip MUXs optical BW > 13nm @ 0.5dB loss;

800G DR8 Tx-PIC

Features：

▸On-chip loss ≤ 10dB (2 LDs case), ≤ 13dB (1 LD case), w.o. I/O coupling loss or

    MZM 3dB working point loss;

▸I/O EC coupling loss ≤ 1.5dB/facet;

▸Heater Ppi ≤ 12mW;

▸Heater resistance = 120ohm;

▸MZM 3dB EO BW ≥ 30GHz;

▸MZM Vpi ≤ 6.3V;

▸MZM differential Zt = 75ohm;

▸MPD responsivity ≥ 0.95 A/W;

▸MPD dark current ≤ 50nA @ -1V RT;

400G DR4 Tx-PIC

Features：

▸ On-chip loss ≤ 10dB (1 LD case), w.o. I/O coupling loss or MZM 3dB working

     point loss;

▸ I/O EC coupling loss ≤ 1.5dB/facet;

▸ Heater Ppi ≤ 12mW;

▸ Heater resistance = 120ohm;

▸ MZM 3dB EO BW ≥ 30GHz;

▸ MZM Vpi ≤ 6.3V;

▸ MZM differential Zt = 75ohm;

▸ MPD responsivity ≥ 0.95 A/W;

▸ MPD dark current ≤ 50nA @ -1V RT;

400G FR4 Tx-PIC

Features：

▸ On-chip loss ≤ 5.5dB (4 LDs case), w.o. I/O coupling loss or MZM 3dB working

     point loss;

▸ I/O EC coupling loss ≤ 1.5dB/facet;

▸ Heater Ppi ≤ 12mW;

▸ Heater resistance = 120ohm;

▸ MZM 3dB EO BW ≥ 30GHz;

▸ MZM Vpi ≤ 6.3V;

▸ MZM differential Zt = 75ohm;

▸ MPD responsivity ≥ 0.95 A/W;

▸ MPD dark current ≤ 50nA @ -1V RT;

▸ One on-chip MUX optical BW > 13nm @ 0.5dB loss;
